Differences Between Screw Compressors and Piston Compressors

Air compressors are essential devices in various industries, ranging from manufacturing to automotive repair. Two of the most commonly used types of compressors are screw compressors and piston compressors. Each type has its own characteristics, advantages, and disadvantages that make it suitable for specific needs. In this article, we will explore in detail the differences between these two types of compressors, including their working principles, efficiency, applications, and maintenance costs.

1. Working Principles

Screw Compressors

Screw compressors operate using two interlocking helical rotors. Air enters through the intake port and gets trapped between the rotor threads. As the rotors turn, the air is compressed and pushed out through the discharge port at high pressure.

Advantages of Screw Operation:

• The compression process is continuous, providing a steady airflow without pulsation.
• This design makes screw compressors more efficient for long-term use with high air volume demands.

Piston Compressors

Piston compressors use a reciprocating motion of a piston inside a cylinder to compress air. As the piston moves down, air enters the cylinder. When the piston moves up, the air is compressed and discharged through the outlet valve.

Advantages of Piston Operation:

• Simple and easy-to-understand design.
• Suitable for applications requiring high-pressure air for short durations.

Key Difference: Screw compressors provide continuous operation, whereas piston compressors work in cycles, resulting in pulsating airflow.

2. Efficiency

Screw Compressors

• More efficient for large air volume requirements.
• Lower energy consumption for the same output compared to piston compressors.
• Minimal air leakage due to tightly sealed rotor designs.

Piston Compressors

• Efficiency tends to be lower for long-term use because of the heat and friction generated.
• More energy is wasted as heat compared to screw compressors.
• However, they are efficient for intermittent or short-term air needs.

Conclusion: If energy efficiency is a priority, especially for continuous use, screw compressors are superior.

3. Durability and Maintenance

Screw Compressors

• High Durability: Designed for nonstop operation under heavy loads.
• Maintenance: Requires regular maintenance, such as oil changes and air filter replacements.
• Lifespan: Longer lifespan if maintained properly.

Piston Compressors

• Standard Durability: Better suited for intermittent use rather than continuous operation.
• Maintenance: Easier but more frequent maintenance, as components like piston rings and valves wear out faster.
• Lifespan: Shorter lifespan when used for heavy-duty continuous tasks.

Conclusion: Screw compressors excel in durability and longevity but demand more technical maintenance.

4. Noise and Vibration

Screw Compressors

• Operate very smoothly with low noise levels.
• Minimal vibration, making them ideal for noise-sensitive work environments.

Piston Compressors

• Louder due to the mechanical motion of the pistons and valves.
• Higher vibration levels, especially in larger piston models.

Conclusion: Screw compressors are better suited for environments requiring quiet operation.

5. Applications

Screw Compressors

Ideal for:

• Large manufacturing industries require continuous air supply.
• Food and beverage processing plants.
• Hospitals and laboratories due to stable airflow and low noise.

Piston Compressors

Ideal for:

• Automotive workshops or light-duty tasks need high-pressure air intermittently.
• Portable or small-scale applications, such as painting or tire inflation.
• DIY projects or household needs.

Conclusion: Choose a compressor based on the scale and specific requirements of your application.

6. Investment and Operational Costs

Screw Compressors

• Initial Cost: Higher due to advanced technology.
• Operational Costs: Lower in the long run due to better energy efficiency.
• Return on Investment: Best for large-scale industries with nonstop operations.

Piston Compressors

• Initial Cost: More affordable.
• Operational Costs: Higher for long-term use due to greater energy consumption and frequent maintenance.
• Return on Investment: Suitable for small-scale or temporary needs.

Conclusion: Piston compressors are more economical initially, while screw compressors save more in operational costs over time.

7. Size and Mobility

Screw Compressors

• Typically larger and heavier.
• Stationary design, not meant for easy relocation.

Piston Compressors

• Smaller and lighter.
• Many models are portable and easy to move as needed.

Conclusion: Piston compressors are more flexible in terms of mobility, while screw compressors are better for permanent installations.

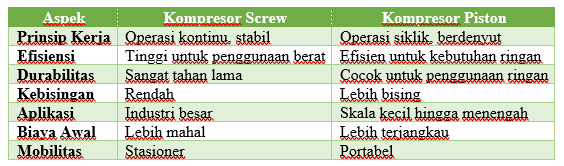

8. Final Summary

Ultimately, the choice between a screw compressor and a piston compressor depends on your specific needs. If you require a high-volume, continuous air supply with energy efficiency, a screw compressor is the ideal choice. However, for smaller, intermittent tasks with budget constraints, a piston compressor is a more practical solution.

We hope this article helps you understand the differences between these two types of compressors
